What is Curved Tempered Glass?

Curved tempered glass, also known as bent tempered glass, is a type of safety glass produced by heating flat glass to a high temperature and forming it into a specific curved shape before the tempering process. This advanced manufacturing process creates a strong and durable glass product with both excellent safety performance and unique architectural appearance.

Compared with ordinary flat tempered glass, curved tempered glass provides greater design flexibility and is widely used in modern buildings that require smooth curved surfaces and distinctive visual effects. It is commonly applied in glass facades, curtain walls, shopping malls, hotels, luxury villas, glass railings, and other architectural projects.

As an experienced curved tempered glass manufacturer in China, XSJ Glass provides customized curved glass solutions with different glass types, thicknesses, sizes, and shapes according to project requirements. Our curved tempered glass can also be combined with laminated glass, Low-E glass, or insulated glass to meet various safety, energy efficiency, and design requirements.

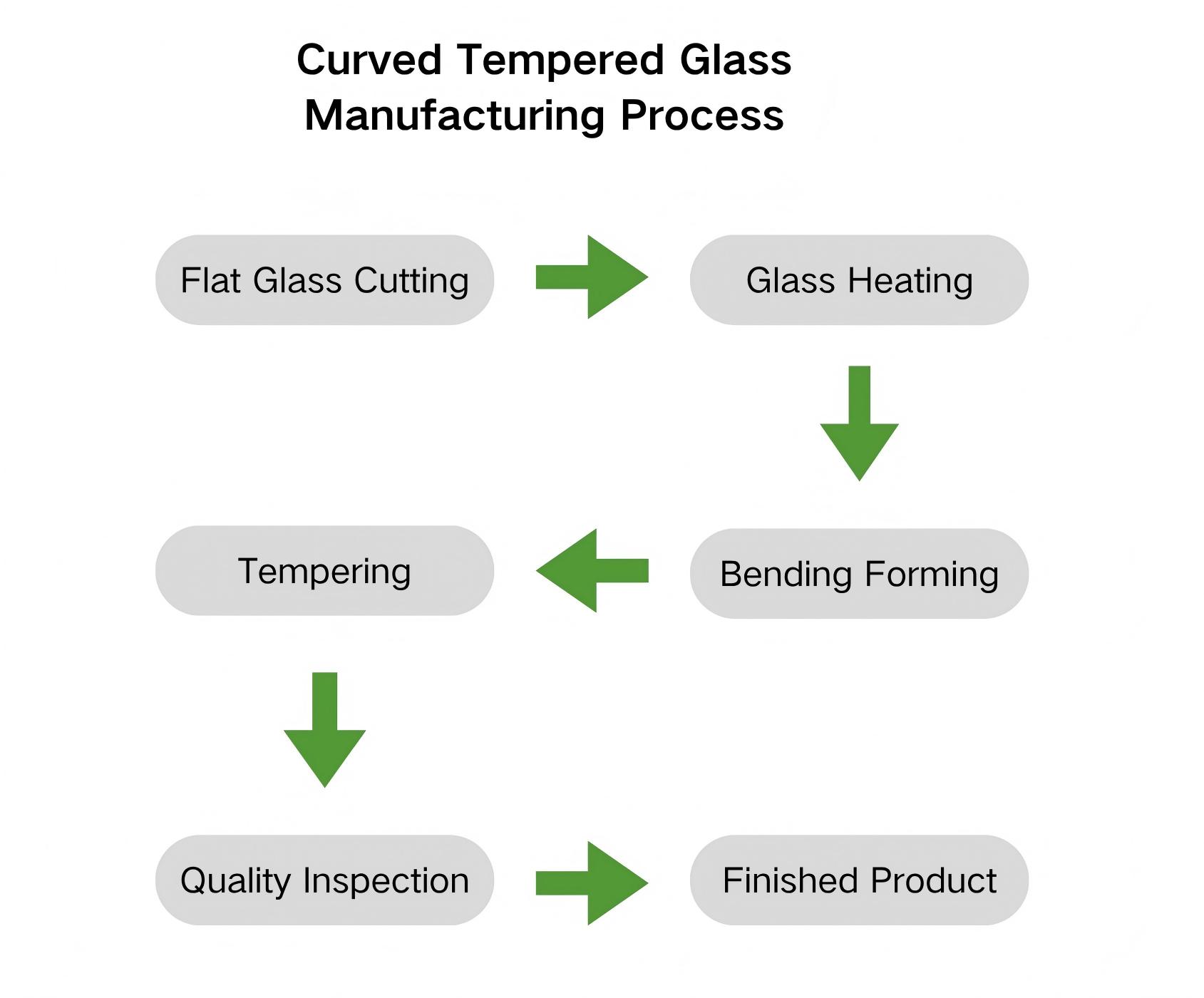

How is Curved Tempered Glass Manufactured?

The manufacturing process of curved tempered glass starts with high-quality flat glass that is carefully cut and processed according to the required project specifications. The glass is then heated to a high temperature until it becomes flexible, allowing it to be formed into the desired curved shape through precise bending technology.

After the bending process, the curved glass undergoes rapid cooling to complete the tempering process. This creates a stronger safety glass with improved mechanical strength and thermal resistance compared with ordinary glass.

XSJ Glass uses advanced glass bending technology and strict quality control throughout the production process to ensure accurate shapes, smooth surfaces, and reliable performance. Our custom curved glass can be manufactured in different sizes, thicknesses, and configurations for architectural applications.

The final curved tempered glass can also be further processed into curved laminated glass, curved insulated glass, or Low-E curved glass to meet different requirements for safety, energy efficiency, and architectural design.

Advantages of Curved Tempered Glass

1. Unique Architectural Design: Curved tempered glass provides smooth and elegant curved surfaces, allowing architects to create modern and distinctive building designs with greater visual appeal.

2. High Safety Performance: As a type of tempered safety glass, curved tempered glass offers higher strength and better impact resistance than ordinary glass, making it suitable for demanding architectural applications.

3. Excellent Strength and Durability: Through advanced bending and tempering processes, curved tempered glass achieves excellent mechanical strength and thermal resistance for long-term use in indoor and outdoor environments.

4. Customized Glass Solutions: XSJ Glass provides custom curved glass solutions with different shapes, sizes, thicknesses, and processing options to meet various architectural and engineering requirements.

5. Smooth Surface and Premium Appearance: The curved structure creates a seamless and elegant appearance, making it ideal for glass facades, curtain walls, hotels, shopping malls, and luxury buildings.

6. Versatile Architectural Applications: Curved tempered glass can be used alone or combined with laminated glass, Low-E glass, and insulated glass to achieve different requirements for safety, energy efficiency, and design.

Types of Curved Tempered Glass We Supply

XSJ Glass provides customized curved glass solutions for different architectural and engineering requirements. Our curved glass products can be manufactured with various glass types, thicknesses, and processing options to achieve the required safety, performance, and design effects.

1. Curved tempered glass is a strong and durable safety glass produced through precise heating, bending, and tempering processes. It is widely used in glass facades, curtain walls, railings, and modern architectural projects.

2. Curved laminated glass combines curved glass panels with an interlayer such as PVB or SGP to provide enhanced safety, security, and sound insulation performance. It is suitable for applications requiring additional protection.

3. Curved insulated glass combines curved glass with an insulating air or gas cavity to improve thermal performance and energy efficiency. It is commonly used in curved curtain walls and high-performance building facades.

4. Low-E curved glass uses a low-emissivity coating to reduce heat transfer and improve solar control performance. It is an ideal solution for energy-efficient buildings in hot climates and modern architectural projects.

5. Double curved glass features two-directional bending, providing unique design possibilities for complex architectural structures and special building facades.

Moreover, curved tempered glass can be customized with additional processing technologies, including ceramic frit, laminated glass, and insulated glass production. These combined glass solutions not only enhance the visual appeal of modern buildings but also provide improved safety, energy efficiency, and functional performance for various architectural applications.

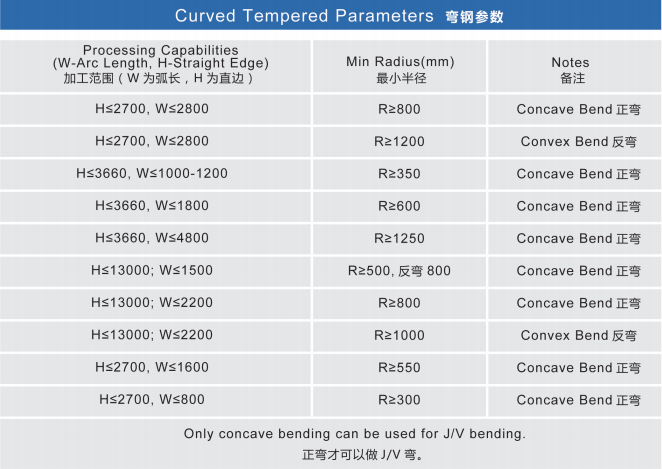

Curved Tempered Glass Technical Specification

XSJ Glass provides customized curved tempered glass solutions with advanced bending and tempering technology. Our large-size curved glass capability supports a wide range of architectural applications, including curtain walls, glass facades, commercial buildings, and special design projects.

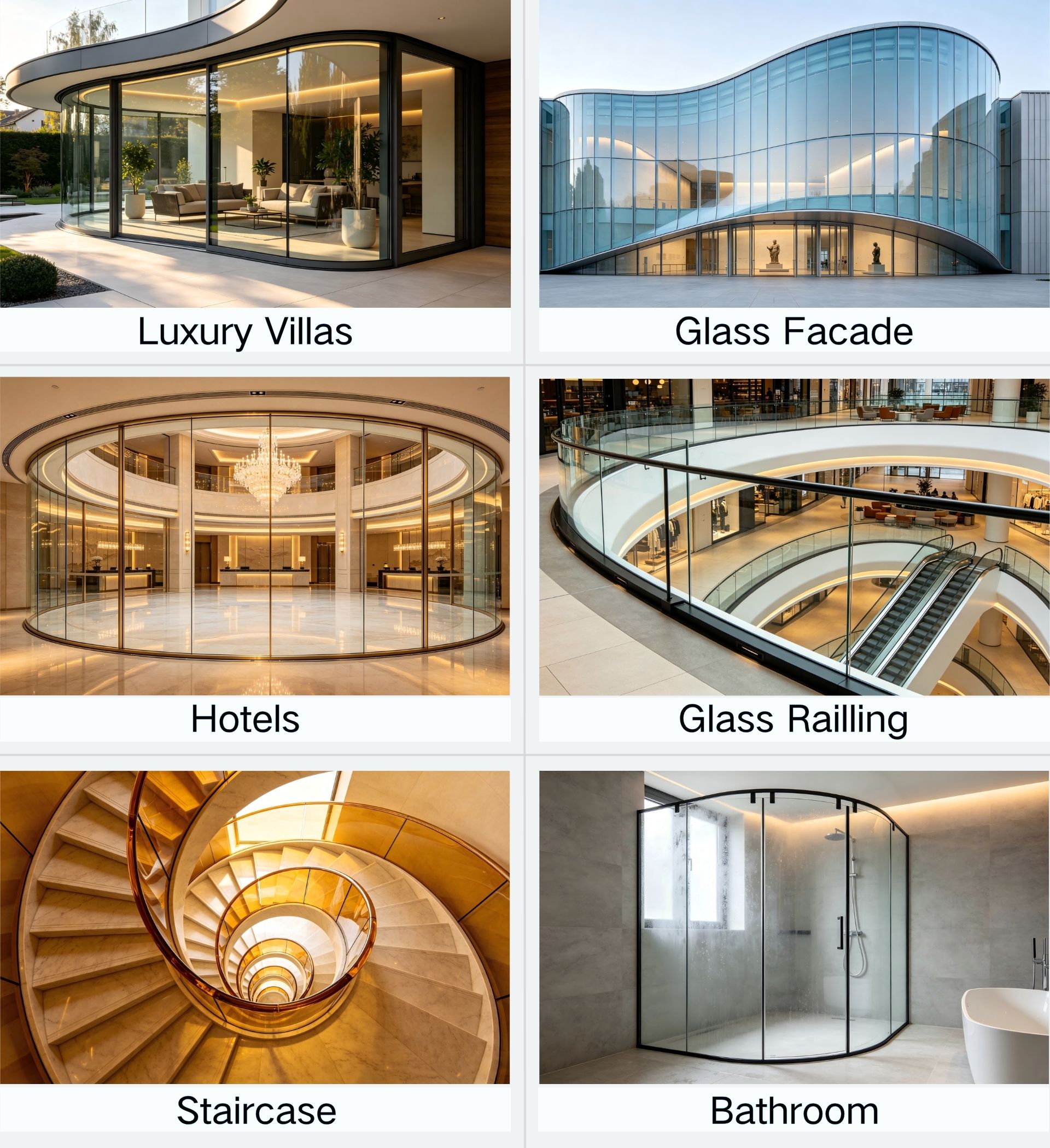

Applications of Curved Tempered Glass

XSJ curved tempered glass is widely used in modern architectural projects that require unique designs, smooth curved surfaces, and high safety performance. As an experienced curved tempered glass manufacturer in China, XSJ Glass provides customized curved glass solutions for commercial buildings, curtain walls, hotels, luxury villas, and other high-end architectural applications.

FAQ

What is curved tempered glass?

Curved tempered glass, also known as bent tempered glass, is safety glass formed by heating and bending flat glass into a specific curved shape before the tempering process.

What are the advantages of curved tempered glass?

Curved tempered glass provides high strength, safety performance, smooth appearance, and flexible design options for modern architectural projects.

What is the difference between curved glass and flat glass?

Curved glass offers unique shapes and design flexibility, while flat glass is mainly used for traditional windows and flat glazing applications.

What glass thicknesses are available for curved tempered glass?

XSJ Glass provides customized curved tempered glass in different thicknesses, sizes, and shapes according to project requirements.

Can curved tempered glass be combined with other glass types?

Yes. Curved tempered glass can be combined with laminated glass, Low-E glass, or insulated glass to achieve higher safety, energy efficiency, and performance.

What applications use curved tempered glass?

Curved tempered glass is widely used in curtain walls, glass facades, hotels, shopping malls, luxury villas, railings, and special architectural structures.

What is the maximum size of XSJ curved tempered glass?

XSJ Glass can manufacture large-size curved tempered glass up to 3660mm × 13000mm for customized architectural projects.

Can XSJ Glass customize curved glass solutions?

Yes. As an experienced curved tempered glass manufacturer in China, XSJ Glass provides customized glass solutions based on drawings, specifications, and project requirements.
